2016 Acura TLX fuse box diagram
The 2016 Acura TLX has 3 different fuse boxes:
Engine Compartment Fuse Box Type A diagram
Driver’s Side Interior Fuse Box Type A diagram
Driver's Side Interior Fuse Box Type A diagram
Acura TLX fuse box diagrams change across years, pick the right year of your vehicle:
| Type | No. | Description | |
|---|---|---|---|
Multi fuse block MUSB | 1 | EPS | |
Multi fuse block MUSB | 1 | Sub Fuse Box [6-cylinder models with AWD] | |
Multi fuse block MUSB | 1 | ABS/VSA Motor | |
Multi fuse block MUSB | 1 | ABS/VSA FSR | |
Multi fuse block MUSB | 1 | Main Fan [6-cylinder models with 2WD], [6-cylinder models with AWD] | |
Multi fuse block MUSB | 1 | Main Fuse | |
Multi fuse block MUSB | 2 | IG Main | |
Multi fuse block MUSB | 2 | F/B Main | |
Multi fuse block MUSB | 2 | F/B Main 2 | |
Multi fuse block MUSB | 2 | Headlight Main | |
Multi fuse block MUSB | 2 | IG Main 2 | |
Multi fuse block MUSB | 2 | Starter Cut 1 | |
Multi fuse block MUSB | 2 | Injector [6-cylinder models with 2WD]," [6-cylinder models with AWD] | |
Multi fuse block MUSB | 2 | Sub Fan[4-cylinder models] | |
Multi fuse block MUSB | 2 | Rear Defroster | |
Multi fuse block MUSB | 2 | Main Fan* Sub Fan [6-cylinder models with 2WD], [6-cylinder models with AWD] | |
Multi fuse block MUSB | 2 | Wiper | |
Multi fuse block MUSB | 2 | Heater Motor | |
Multi fuse block MUSB | 3 | Headlight Washer [6-cylinder models with 2WD], [6-cylinder models with AWD] | |
Multi fuse block MUSB | 3 | Left Electric Parking Brake | |
Multi fuse block MUSB | 3 | Right Electric Parking Brake | |
Multi fuse block MUSB | 3 | SH-AWD [6-cylinder models with AWD] | |
Fuse MINI - | 4 | - | |
Fuse MINI - | 5 | - | |
Fuse MINI - | 6 | - | |
Fuse MINI - | 7 | - | |
Fuse MINI 7.5A | 8 | STRLD [4-cylinder models], [6-cylinder models with 2WD] | |
Fuse MINI 5A | 9 | Interior Lights [4-cylinder models] [6-cylinder models with 2WD] | |
Fuse MINI 20A | 10 | Headlight Low/High Main | |
Fuse MINI 7.5A | 11 | Oil Level | |
Fuse MINI 7.5A | 12 | Front Fog Lights* | |
Fuse MINI 20A | 13 | Passenger's Power Seat Reclining | |
Fuse MINI 15A | 14 | Hazard | |
Fuse MINI 15A | 15 | IGP2 | |
Fuse MINI 15A | 16 | IG Coil | |
Fuse MINI 10A | 17 | Stop [4-cylinder models],
[6-cylinder models with 2WD] | |
Fuse MINI 10A | 18 | Horn | |
Fuse MINI 20A | 19 | Audio* [4-cylinder models], [6-cylinder models with 2WD] | |
Fuse MINI 5A | 19 | Interior Light [6-cylinder models with AWD] | |
Fuse MINI 20A | 20 | ACM [6-cylinder models with 2WD] | |
Fuse MINI 20A | 20 | Injector*¹ | |
Fuse MINI 15A | 21 | Fl Main | |
Fuse MINI 15A | 22 | DBW | |
Fuse MINI 10A | 23 | TCU/SBW [6-cylinder models with 2WD], [6-cylinder models with AWD] | |
Fuse MINI 30A | 24 | Premium AMP | |
Fuse MINI 7.5A | 25 | MG Clutch | |
Fuse MINI 20A | 26 | Passenger's Power Seat Sliding | |
Fuse MINI 15A | 27 | Small* 1, [6-cylinder models with 2WD] | |
Fuse MINI 7.5A | 28 | BMS | |
Fuse MINI 10A | 29 | Back Up |

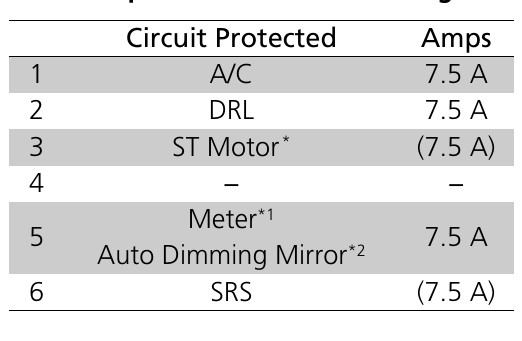

| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 7.5A | 1 | A/C | |
Fuse MINI 7.5A | 2 | DRL | |
Fuse MINI 7.5A | 3 | ST Motor [2WD models] | |
Fuse MINI - | 4 | - | |
Fuse MINI 7.5A | 5 | Meter [2WD models] | |
Fuse MINI 7.5A | 5 | Auto Dimming Mirror [AWD models] | |
Fuse MINI 7.5A | 6 | SRS | |
Fuse MINI 7.5A | 7 | Option | |
Fuse MINI 15A | 8 | MISS SOL | |
Fuse MINI 20A | 9 | Fuel Pump | |
Fuse MINI 7.5A | 10 | ABS/VSA [2WD models] | |
Fuse MINI 7.5A | 10 | Smart [AWD models] | |
Fuse MINI 30A | 11 | Spare Fuse | |
Fuse MINI 7.5A | 12 | Wiper | |
Fuse MINI 15A | 13 | ACG | |
Fuse MINI 20A | 14 | Accessory Power Socket (Console Compartment) | |
Fuse MINI 20A | 15 | Driver's Power Seat Reclining | |
Fuse MINI 20A | 16 | Moonroof | |
Fuse MINI 20A | 17 | AVS/Seat Heaters | |
Fuse MINI - | 18 | - | |
Fuse MINI 10A | 19 | Passenger's Side Door Unlock | |
Fuse MINI 10A | 20 | Driver's Side Rear Door Unlock | |
Fuse MINI 10A | 21 | Driver's Side Door Lock | |
Fuse MINI 10A | 22 | Passenger's Side Door Lock | |
Fuse MINI 10A | 23 | Driver's Side Door Unlock | |
Fuse MINI 10A | 24 | SRS | |
Fuse MINI 7.5A | 25 | Instrument Panel Lights | |
Fuse MINI 7.5A | 26 | ACC Key Lock | |
Fuse MINI 7.5A | 27 | Parking Lights | |
Fuse MINI 10A | 28 | Lumbar Support | |
Fuse MINI 7.5A | 29 | Right DRL | |
Fuse MINI 20A | 30 | Washer | |
Fuse MINI 10A | 31 | SMART | |
Fuse MINI 20A | 32 | Driver's Side Power Window | |
Fuse MINI 20A | 33 | Passenger's Side Power Window | |
Fuse MINI 20A | 34 | Rear Driver's Side Power Window | |
Fuse MINI 20A | 35 | Rear Passenger's Side Power Window | |
Fuse MINI 20A | 36 | Driver's Power Seat Sliding | |
Fuse MINI 7.5A | 37 | ACCESSORY | |
Fuse MINI - | 38 | - | |
Fuse MINI 7.5A | 39 | Left DRL | |
Fuse MINI 20A | 40 | Accessory Power Socket (Center Pocket) | |
Fuse MINI 10A | 41 | Rear Driver's Side Door Lock | |
Fuse MINI 20A | 42 | Door Lock |

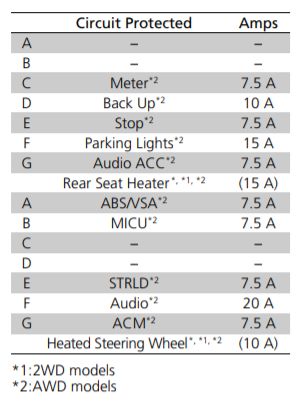

| Type | No. | Description | |
|---|---|---|---|
Fuse MINI 7.5A | A | ABS/VSA [AWD models] | |
Fuse MINI 7.5A | B | MICU [AWD models] | |
Fuse MINI 7.5A | C | Meter [AWD models] | |
Fuse MINI 10A | D | Back Up [AWD models] | |
Fuse MINI 7.5A | E | Stop [AWD models] | |
Fuse MINI 7.5A | E | STRLD [AWD models] | |
Fuse MINI 15A | F | Parking Lights [AWD models] | |
Fuse MINI 20A | F | Audio [AWD models] | |
Fuse MINI 7.5A | G | Audio ACC [AWD models] | |
Fuse MINI 15A | G | Rear Seat Heater [2WD models] [AWD models] | |
Fuse MINI 7.5A | G | ACM [AWD models] | |
Fuse MINI 10A | G | Heated Steering Wheel [2WD models] [AWD models] |
Doesn't match your car?Ask for your diagram
Found a mistake? Let us know!
Source: Acura TLX 2016 Owner's Manual
