2018 Chevrolet Colorado fuse box diagram
The 2018 Chevrolet Colorado has 2 different fuse boxes:

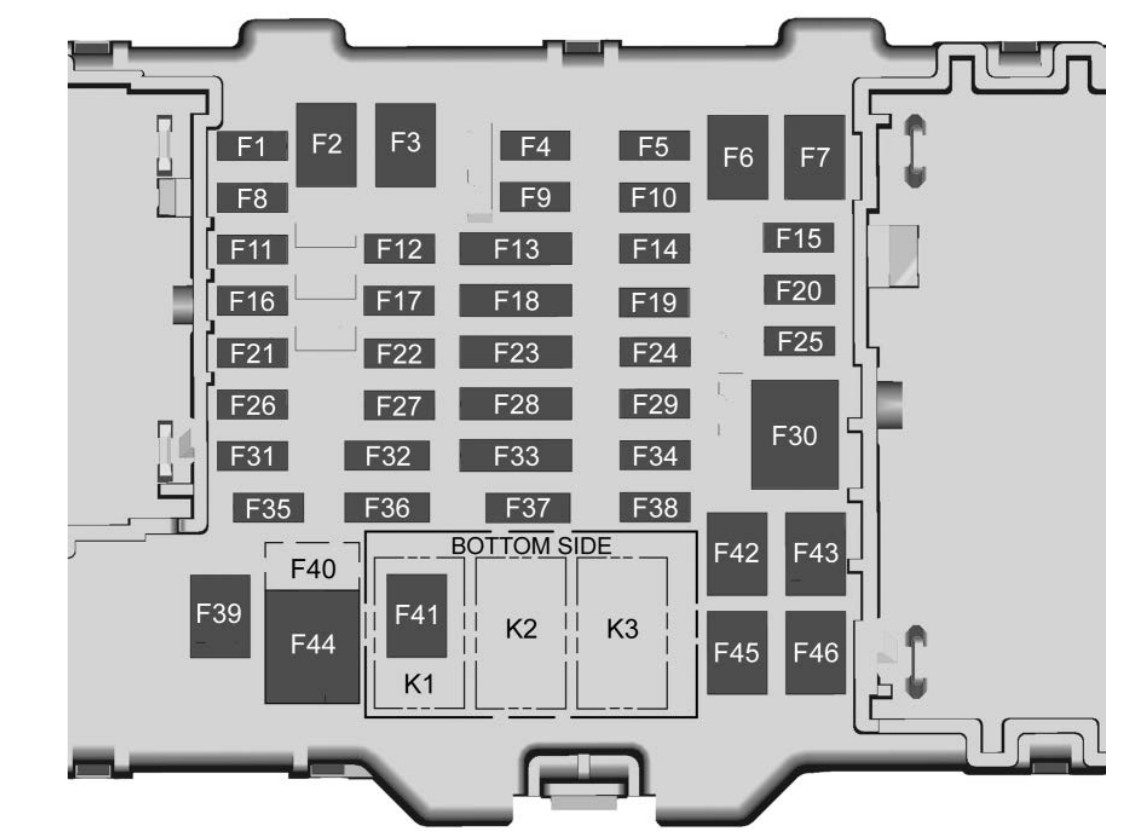

Engine Compartment Fuse Block diagram
Instrument Panel Fuse Block diagram
Chevrolet Colorado fuse box diagrams change across years, pick the right year of your vehicle:

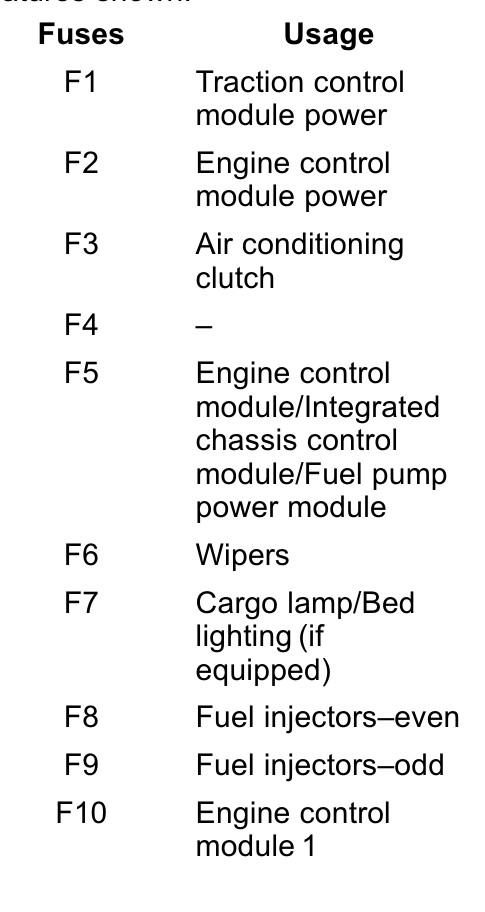

| Type | No. | Description | |
|---|---|---|---|
Fuse MINI | F01 | Traction control module power | |
Fuse MINI | F02 | Engine control module power | |
Fuse MINI | F03 | Air conditioning clutch | |
Fuse MINI | F04 | - | |
Fuse MINI | F05 | Engine control module/Integrated chassis control module/Fuel pump power module | |
Fuse MINI | F07 | Cargo lamp/Bed lighting (if equipped) | |
Fuse MINI | F08 | Fuel injectors-even | |
Fuse MINI | F09 | Fuel injectors-odd | |
Fuse MINI | F10 | Engine control module 1 | |
Fuse MINI | F11 | Miscellaneous 1/ Ignition | |
Fuse MINI | F13 | Traction control module | |
Fuse MINI | F14 | - | |
Fuse MINI | F15 | - | |
Fuse MINI | F16 | - | |
Fuse MINI | F17 | Front axle actuator | |
Fuse MINI | F18 | - | |
Fuse MINI | F19 | - | |
Fuse MINI | F20 | - | |
Fuse MINI | F23 | - | |
Fuse MINI | F29 | - | |
Fuse MINI | F30 | Driver heated seat | |
Fuse MINI | F31 | - | |
Fuse MINI | F32 | Passenger heated seat | |
Fuse MINI | F33 | Body control module 3 | |
Fuse MINI | F34 | Fuel pump power module | |
Fuse MINI | F35 | Integrated chassis control module (if equipped) | |
Fuse MINI | F36 | Center high-mounted stoplamp | |
Fuse MINI | F37 | Right high-beam headlamp | |
Fuse MINI | F38 | Left high-beam headlamp | |
Fuse MINI | F39 | Rear differential lock actuators (ZR2 only) | |
Fuse MINI | F40 | Front differential lock actuators (ZR2 only) | |
Fuse MINI | F46 | Engine control module 2 | |
Fuse MINI | F47 | Miscellaneous 2/ Ignition | |
Fuse MINI | F48 | Fog lamps (if equipped) | |
Fuse MINI | F49 | - | |
Fuse MINI | F50 | Trailer parking lamps | |
Fuse MINI | F51 | Horn | |
Fuse MINI | F52 | - | |
Fuse MINI | F53 | - | |
Fuse MINI | F54 | - | |
Fuse MINI | F55 | - | |
Fuse MINI | F56 | Washer pump | |
Fuse MINI | F57 | - | |
Fuse MINI | F58 | - | |
Fuse MINI | F60 | Mirrors defogger | |
Fuse MINI | F61 | - | |
Fuse MINI | F62 | Canister vent solenoid | |
Fuse MINI | F63 | - | |
Fuse MINI | F64 | Trailer reverse lamp | |
Fuse MINI | F65 | Left trailer stoplamp/Turn signal lamps | |
Fuse MINI | F66 | Right trailer stoplamp/Turn signal lamps | |
Fuse MINI | F67 | Electric power steering | |
Fuse MINI | F68 | - | |
Fuse MINI | F69 | Battery regulated voltage control | |
Fuse MINI | F70 | - | |
Fuse MINI | F71 | - | |
Fuse FMX/JCase | F06 | Wipers | |
Fuse FMX/JCase | F12 | Starter | |
Fuse FMX/JCase | F21 | Front blower | |
Fuse FMX/JCase | F22 | Antilock brake system valves | |
Fuse FMX/JCase | F24 | Trailer | |
Fuse FMX/JCase | F25 | Transfer case electronic control | |
Fuse FMX/JCase | F26 | Antilock brake system pump | |
Fuse FMX/JCase | F27 | Trailer brake control module (if equipped)/Trailer wiring | |
Fuse FMX/JCase | F28 | Rear window defogger | |
Fuse FMX/JCase | F41 | - | |
Fuse FMX/JCase | F42 | - | |
Fuse FMX/JCase | F43 | - | |
Fuse FMX/JCase | F44 | Vacuum pump | |
Fuse FMX/JCase | F45 | - | |
Fuse FMX/JCase | F59 | - | |
Fuse MIDI | F72 | - | |
Fuse MIDI | F73 | - | |
Fuse MIDI | F74 | Generator | |
Fuse MIDI | F75 | - | |
Relay | K01 | Air conditioning clutch | |
Relay | K02 | Starter | |
Relay | K03 | - | |
Relay | K04 | Wipers speed | |
Relay | K05 | Wipers control | |
Relay | K06 | Cargo lamp/Bed lighting (if equipped) | |
Relay | K08 | - | |
Relay | K09 | Front differential lock actuators (ZR2 only) | |
Relay | K10 | Rear differential lock actuators (ZR2 only) | |
Relay | K11 | Center high-mounted stoplamp | |
Relay | K12 | Vacuum pump | |
Relay | K13 | - | |
Relay | K14 | Trailer parking lamps | |
Relay | K07 | Powertrain | |
Relay | K15 | Run/Crank | |
Relay | K17 | Rear window/Mirror defogger | |
Relay | K16 | - |
| Type | No. | Description | |
|---|---|---|---|
Fuse MICRO2 | F01 | Body control module 1 | |
Fuse MICRO2 | F04 | Steering wheel controls | |
Fuse MICRO2 | F05 | Body control module 2 | |
Fuse MICRO2 | F08 | Mirror window module | |
Fuse MICRO2 | F09 | Instrument cluster | |
Fuse MICRO2 | F10 | - | |
Fuse MICRO2 | F11 | Body control module 8 | |
Fuse MICRO2 | F12 | - | |
Fuse MICRO2 | F14 | Radio/HMI | |
Fuse MICRO2 | F15 | Body control module 6 | |
Fuse MICRO2 | F16 | Communication gateway module | |
Fuse MICRO2 | F17 | Body control module 4 | |
Fuse MICRO2 | F19 | - | |
Fuse MICRO2 | F20 | Amplifier (if equipped) | |
Fuse MICRO2 | F21 | - | |
Fuse MICRO2 | F22 | - | |
Fuse MICRO2 | F24 | HVAC ignition | |
Fuse MICRO2 | F25 | Body control module 7 | |
Fuse MICRO2 | F26 | - | |
Fuse MICRO2 | F27 | - | |
Fuse MICRO2 | F29 | Miscellaneous/Ignition | |
Fuse MICRO2 | F31 | Front camera | |
Fuse MINI | F32 | Steering wheel controls backlighting | |
Fuse MICRO2 | F34 | Front ventilated seats | |
Fuse MICRO2 | F35 | Park/Reverse/Neutral/ Drive/Low/Wireless charging module | |
Fuse MINI | F36 | Discrete logic ignition sensor | |
Fuse MICRO2 | F38 | - | |
Fuse MICRO3 | F13 | OnStar/HVAC | |
Fuse MICRO3 | F18 | Airbag | |
Fuse MICRO3 | F23 | Data link connector/USB | |
Fuse MICRO3 | F28 | Instrument panel/ Sensing and diagnostic module/ Ignition | |
Fuse MICRO3 | F33 | Heated steering wheel | |
Fuse FMM/MCase | F02 | - | |
Fuse FMM/MCase | F03 | - | |
Fuse FMM/MCase | F06 | - | |
Fuse FMM/MCase | F07 | - | |
Fuse FMM/MCase | F39 | Auxiliary power outlet 2 | |
Fuse FMM/MCase | F41 | Auxiliary power outlet 1/Lighter | |
Fuse FMM/MCase | F42 | Left power window | |
Fuse FMM/MCase | F43 | Driver power seat | |
Fuse FMM/MCase | F45 | Right power window | |
Fuse FMM/MCase | F46 | Passenger power seat | |
Fuse FMX/JCase | F30 | - | |
Fuse FMM/MCase | F40 | Auxiliary power outlet | |
Fuse FMX/JCase | F44 | - | |
Fuse MINI | F37 | - | |
Relay | K1 | Retained accessory power | |
Relay | K2 | Run/Crank |
