2014 Ford Fiesta fuse box diagram
The 2014 Ford Fiesta has 2 different fuse boxes:
Engine Compartment Fuse Box diagram
Passenger Compartment Fuse Box diagram
Ford Fiesta fuse box diagrams change across years, pick the right year of your vehicle:
| Type | No. | Description | |
|---|---|---|---|

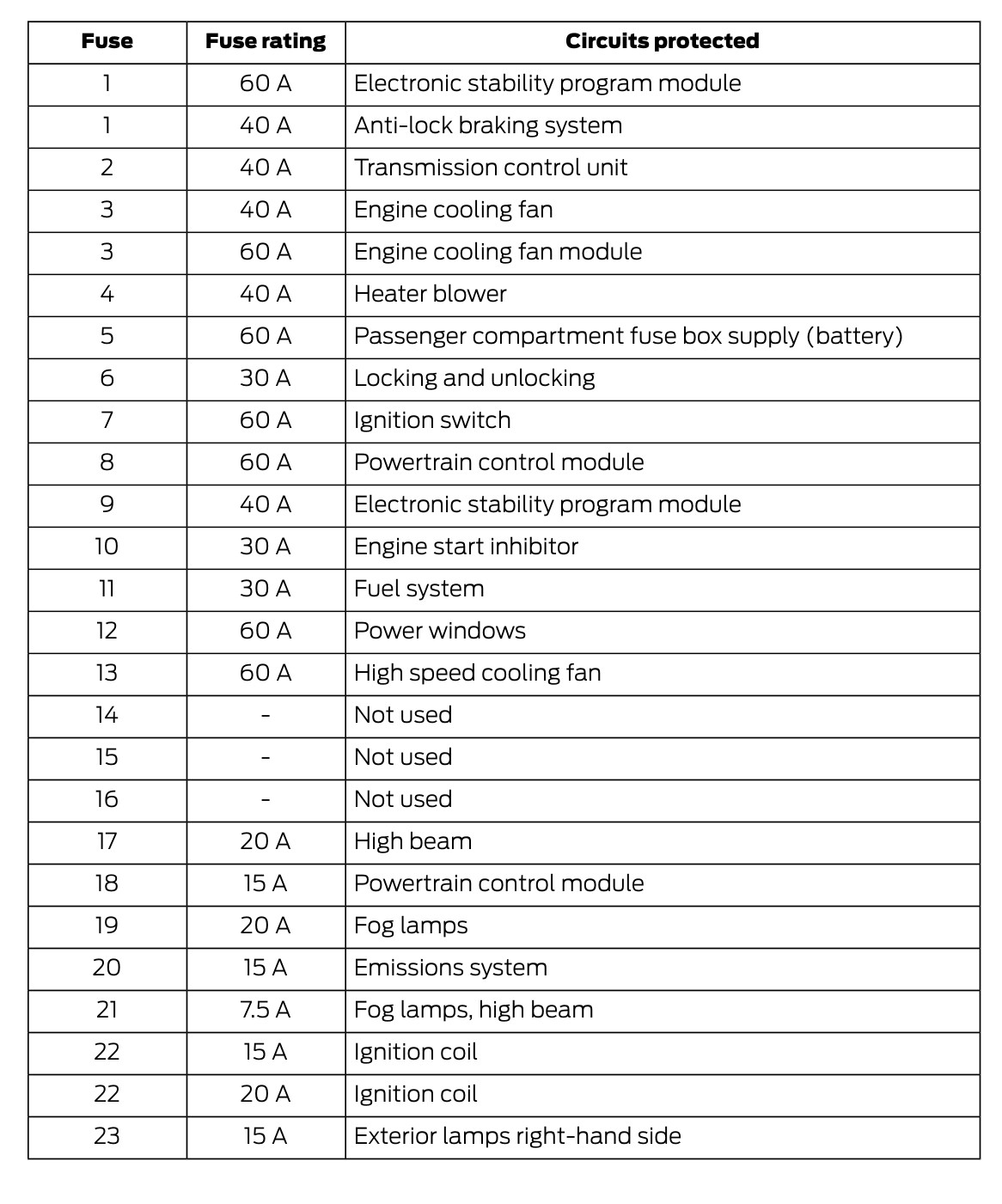

Fuse FMX/JCase 60A | 1 | Electronic stability program module | |
Fuse FMX/JCase 40A | 1 | Anti-lock braking system | |
Fuse FMX/JCase 40A | 2 | Transmission control unit | |
Fuse FMX/JCase 40A | 3 | Engine cooling fan | |
Fuse FMX/JCase 60A | 3 | Engine cooling fan module | |
Fuse FMX/JCase 40A | 4 | Heater blower | |
Fuse FMX/JCase 60A | 5 | Passenger compartment fuse box supply (battery) | |
Fuse FMX/JCase 30A | 6 | Locking and unlocking | |
Fuse FMX/JCase 60A | 7 | Ignition switch | |
Fuse FMX/JCase 60A | 8 | Powertrain control module | |
Fuse FMX/JCase 40A | 9 | Electronic stability program module | |
Fuse FMX/JCase 30A | 10 | Engine start inhibitor | |
Fuse FMX/JCase 30A | 11 | Fuel system | |
Fuse FMX/JCase 60A | 12 | Power windows | |
Fuse FMX/JCase 60A | 13 | High speed cooling fan | |
Fuse FMX/JCase - | 14 | Not used | |
Fuse FMX/JCase - | 15 | Not used | |
Fuse FMX/JCase - | 16 | Not used | |
Fuse MINI 20A | 17 | High beam | |
Fuse MINI 15A | 18 | Powertrain control module | |
Fuse MINI 20A | 19 | Fog lamps | |
Fuse MINI 15A | 20 | Emissions system | |
Fuse MINI 7.5A | 21 | Fog lamps, high beam | |
Fuse MINI 15A | 22 | Ignition coil | |
Fuse MINI 20A | 22 | Ignition coil | |
Fuse MINI 15A | 23 | Exterior lamps right-hand side | |
Fuse MINI 10A | 24 | Emissions system | |
Fuse MINI 15A | 25 | Exterior lamps left-hand side | |
Fuse MINI 20A | 26 | Horn, battery back-up sounder, interior lamps | |
Fuse MINI 7.5A | 27 | Engine cold start system module | |
Fuse MINI 15A | 27 | Water pump, active grill shutter | |
Fuse MINI 15A | 28 | Direction indicators | |
Fuse MINI 20A | 29 | Compressed natural gas, fuel control module | |
Fuse MINI 10A | 30 | Air conditioning clutch | |
Fuse MINI - | 31 | Not used | |
Fuse MINI 7.5A | 32 | Powertrain control module, transmission control unit | |
Fuse MINI 10A | 33 | Fuel injectors | |
Fuse MINI 7.5A | 33 | Mass air flow sensor | |
Fuse MINI 30A | 34 | Heated exterior mirrors | |
Fuse MINI 10A | 35 | Fog lamp left-hand side | |
Fuse MINI 10A | 36 | Fog lamp right-hand side | |
Fuse MINI 10A | 37 | High beam left-hand side | |
Fuse MINI 10A | 38 | High beam right-hand side | |
Fuse MINI - | 39 | Not used | |
Fuse MINI - | 40 | Not used | |
Fuse MINI - | 41 | Not used | |
Fuse MINI - | 42 | Not used | |
Fuse MINI - | 43 | Not used | |
Fuse MINI - | 44 | Not used | |
Fuse MINI - | 45 | Not used | |
Fuse MINI - | 46 | Not used | |
Relay | R1 | Compressed natural gas fuel system | |
Relay | R2 | Not used | |
Relay | R3 | Powertrain control module | |
Relay | R4 | Heater blower | |
Relay | R5 | Engine cooling fan | |
Relay | R6 | Air conditioning clutch | |
Relay | R7 | High speed engine cooling fan | |
Relay | R8 | Not used | |
Relay | R9 | Engine start inhibitor | |
Relay | R10 | High beam | |
Relay | R11 | Fog lamps | |
Relay | R12 | Reversing lamp | |
Relay | R13 | Fuel pump |
| Type | No. | Description | |
|---|---|---|---|

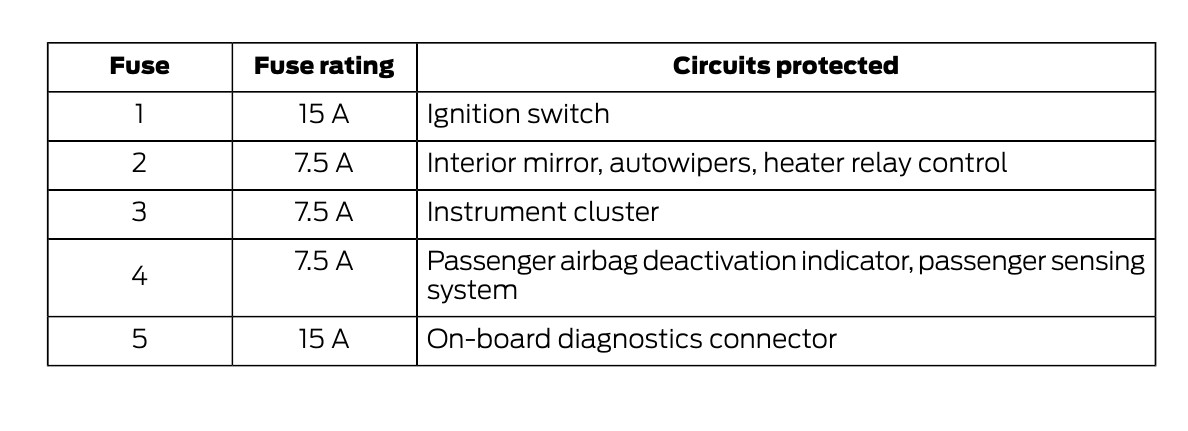

Fuse MINI 15A | 1 | Ignition switch | |
Fuse MINI 7.5A | 2 | Interior mirror, autowipers, heater relay control | |
Fuse MINI 7.5A | 3 | Instrument cluster | |
Fuse MINI 7.5A | 4 | Passenger airbag deactivation indicator, passenger sensing system | |
Fuse MINI 15A | 5 | On-board diagnostics connector | |
Fuse MINI 10A | 6 | Reversing lamps | |
Fuse MINI 7.5A | 7 | Instrument panel, information and entertainment display | |
Fuse MINI 7.5A | 8 | Moonroof | |
Fuse MINI 20A | 9 | Keyless entry, keyless starting | |
Fuse MINI 15A | 10 | Audio unit, SYNC | |
Fuse MINI 20A | 11 | Windshield wipers | |
Fuse MINI 7.5A | 12 | Climate control | |
Fuse MINI 15A | 13 | Rear window wiper | |
Fuse MINI 20A | 14 | Keyless entry, keyless starting | |
Fuse MINI 15A | 15 | Wiper switch | |
Fuse MINI 5A | 16 | Electric exterior mirrors, power windows | |
Fuse MINI 15A | 17 | Heated seats | |
Fuse MINI 10A | 18 | Brake lamp | |
Fuse MINI 7.5A | 19 | Instrument cluster | |
Fuse MINI 10A | 20 | Airbags | |
Fuse MINI 7.5A | 21 | Electronic power assisted steering, instrument cluster, ignition, wipers, passive anti-theft system | |
Fuse MINI 7.5A | 22 | Transmission control unit, powertrain control module, anti-lock braking system, electronic stability program | |
Fuse MINI 7.5A | 23 | Transmission control unit | |
Fuse MINI 7.5A | 24 | Audio unit | |
Fuse MINI 7.5A | 25 | Electric exterior mirrors | |
Fuse MINI 7.5A | 26 | Locking and unlocking | |
Fuse MINI - | 27 | Not used | |
Fuse MINI - | 28 | Not used | |
Fuse MINI - | 29 | Not used | |
Fuse MINI - | 30 | Not used | |
Fuse FMX/JCase 30A | 31 | Power windows | |
Fuse FMX/JCase 20A | 32 | Battery back-up sounder | |
Fuse FMX/JCase 20A | 33 | Auxilliary power points | |
Fuse FMX/JCase 30A | 34 | Power windows | |
Fuse FMX/JCase 20A | 35 | Moonroof | |
Fuse FMX/JCase - | 36 | Not used | |
Relay | R1 | Ignition relay | |
Relay | R2 | Not used | |
Relay | R3 | Not used | |
Relay | R4 | Driver heated seat | |
Relay | R5 | Passenger heated seat | |
Relay | R6 | Keyless starting | |
Relay | R7 | Keyless starting | |
Relay | R8 | Battery back-up sounder | |
Relay | R9 | Accessory delay |
Doesn't match your car?Ask for your diagram
Found a mistake? Let us know!
Source: Ford Fiesta 2014 Owner's Manual
